GENERAL FEATURES
● Color High contrast LCD touchscreen, 4.3 inches.
● Intelligent operation system provides features including user management, calibration management, electrode management, method management, data management, Log Management and etc.
● Multi-reading feature allows auto-read, timed-read and continuous-read.
● Automatic/Manual temperature compensation ensures accurate results.
● Auto-hold feature senses and locks the measurement endpoint.
● Data Storage 1000 sets for each parameter (GLP-compliant).
● Data analysis feature helps user review, compare and recalculate results.
● Support for USB communication.
● Auto-power off feature effectively extends the battery service life.
● 复位功能可自动将所有设置恢复为出厂默认选项。
● IP65防水。便携式仪器适用于现场测量和户外测量。
● 1-8点校准,并具有标准识别功能。
● 可选择的pH缓冲组,包括美国、NIST、DIN、GB、MERK、JIS。
● 支持用户自定义pH缓冲或缓冲组。
● 自动电极诊断,显示pH斜率和偏移。
GENERAL FEATURES
● Color High contrast LCD touchscreen, 4.3 inches.
● Intelligent operation system provides features including user management, calibration management, electrode management, method management, data management, Log Management and etc.
● Multi-reading feature allows auto-read, timed-read and continuous-read.
● Automatic/Manual temperature compensation ensures accurate results.
● Auto-hold feature senses and locks the measurement endpoint.
● Data Storage 1000 sets for each parameter (GLP-compliant).
● Data analysis feature helps user review, compare and recalculate results.
● Support for USB communication.
● Auto-power off feature effectively extends the battery service life.
● Reset feature automatically resumes all settings back to factory default options.
● IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.
● 1-8 points calibration with Standard Recognition.
● Selectable pH buffer groups, including USA, NIST, DIN, GB, MERK, JIS.
● User-defined pH buffer or buffer group is supported.
● Automatic electrode diagnosis with pH slope and offset display
Model
|

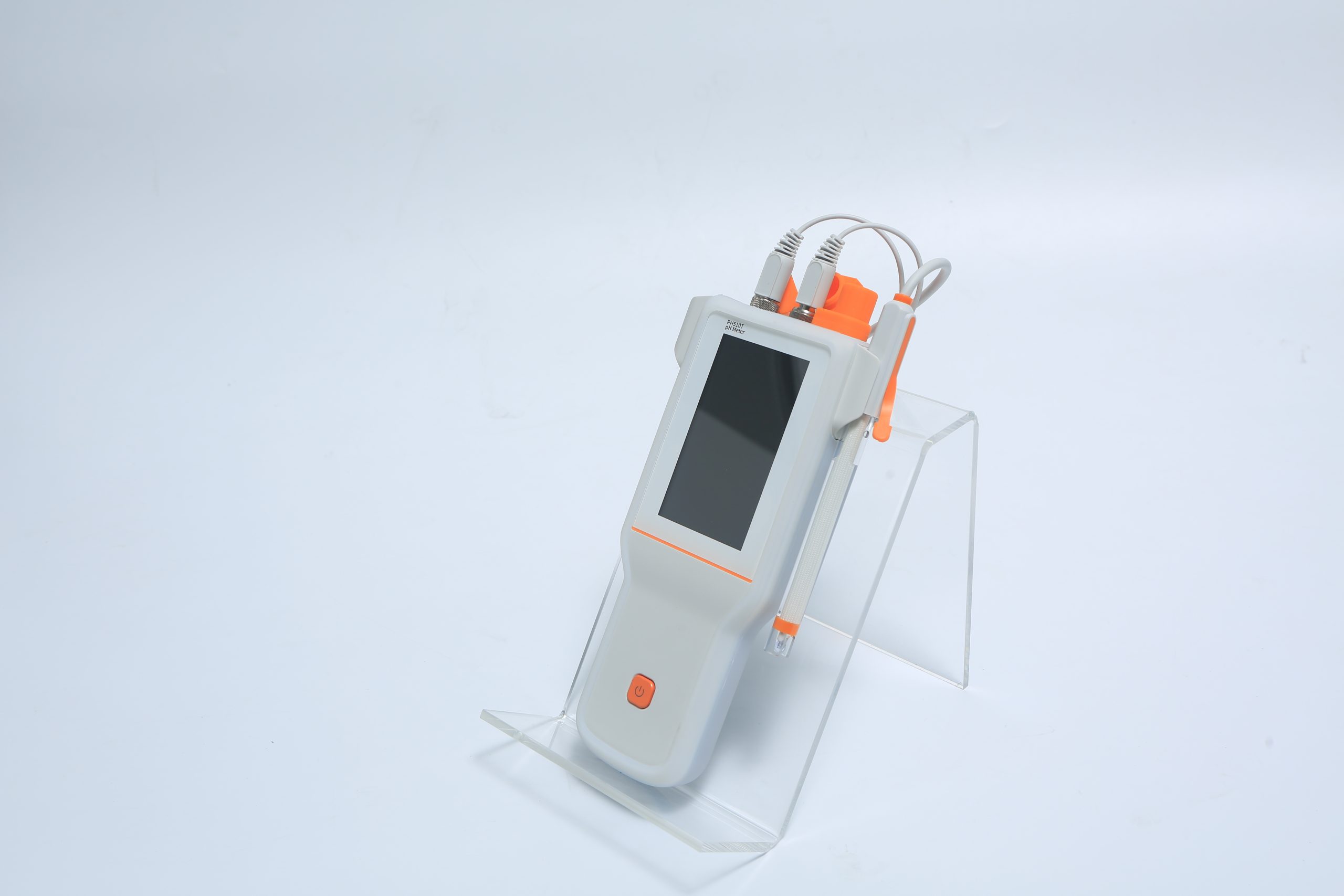

PH510T
|
|
Parameters
|
pH/Temp.(mV/ORP)
|
|
pH
|
Range
|
-2.000 to 20.000 pH
|
Resolution
|
0.1, 0.01, 0.001pH
|
|
Accuracy
|
±0.002 pH
|
|
Calibration Points
|
Up to 8
|
|
Standard Customization
|
Yes
|
|
Calibration Reminder
|
Yes
|
|
Standard Recognition
|
USA, NIST, MERK, JIS, GB and DIN buffers
|
|
Slope Limit
|
Yes
|
|
mV/ORP
|
Range
|
-2000.00 to 2000.00 mV
|
Resolution
|
0.1, 0.01 mV
|
|
Accuracy
|
±0.1 mV or ±0.03%
|
|
EH ORP Mode
|
Yes
|
|
ORP Calibration Points
|
1 custom point (relative mV)
|
|
Temperature
|
Range
|
-10 to 135 ºC, 14 to 275 ºF
|
Unit
|
ºC, ºF
|
|
Resolution
|
0.1
|
|
Accuracy
|
±0.1ºC
|
|
Measurement
|
Reading Mode
|
Auto Read (Fast, Medium, Slow), Timed, Continuous
|
Reading Prompts
|
Reading, Stable, Locked
|
|
Temp. Compensation
|
ATC, MTC
|
|
Data management
|
Data Storage
|
1000 Groups
|
GLP Features
|
Yes
|
|
Inputs
|
pH Electrode
|
BNC(Q9)
|
Temp. Probe
|
4-pin aviation connector
|
|
Outputs
|
USB
|
USB 2.0 flash memory device, PC, scanner
|
Display options
|
Backlight
|
Yes
|
Auto Shutdown
|
300, 600, 1200, 1800, 3600 sec., off
|
|
IP Rating
|
IP65
|
|
Date and Time
|
Yes
|
|
General
|
Power
|
Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output
|
Dimensions
|
90×255×40 mm
|
|
Weight
|
500g (1.1 lb)
|
|
Dimensions (Carton)
|
410×330×165 mm
|
|
Weight (Gross)
|
5.5 kg
|
