EC500T Conductivity Meter

GENERAL FEATURES

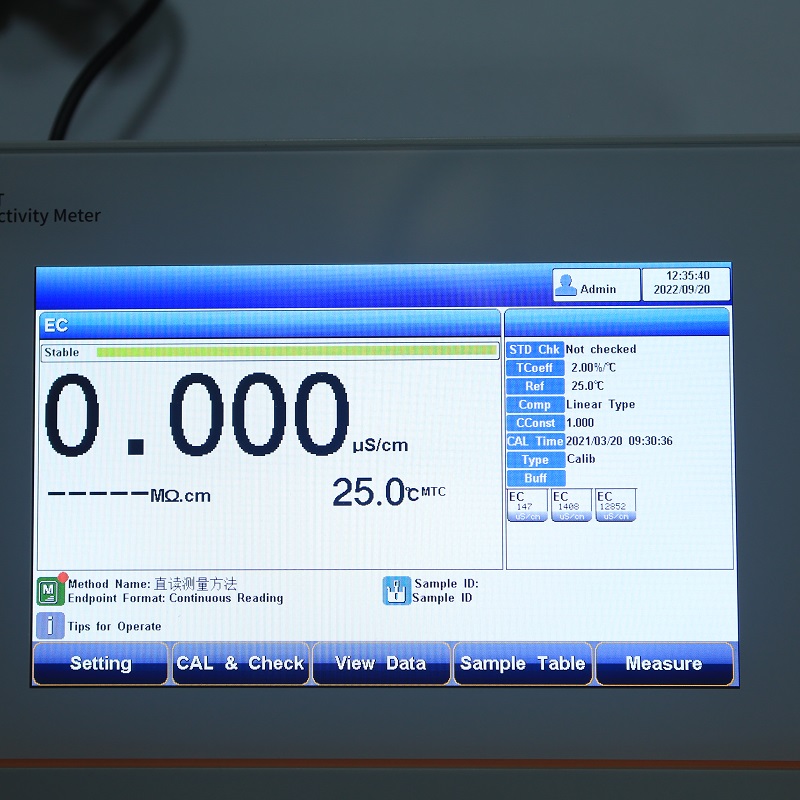

  • ColorHigh contrastLCD touchscreen, 7.0 inches.
  • Intelligentoperation system provides features including user management, calibration management, method management, data management and etc.
  • Multi-readingfeatureallows auto-read, timed-read and continuous-read.
  • Automatic/Manualtemperaturecompensation ensures accurate results.
  • Data Storage1000 sets for each parameter (GLP-compliant).
  • Dataanalysisfeature  helps  user  review,  compare  and recalculate results.
  • Support for USB orRS-232communication.
  • Reset featureautomatically resumes all settings back to factory default options.
  • IP54 waterproof.
  • 1-5points calibration with Standard Recognition.
  • Settableparameters,including cell constant,  reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient and TDS factor.
  • Temperature compensation type (none, linear,purewater).
Get a quote

Products details:

GENERAL FEATURES

Model EC500T
Parameters EC/Temp.(Resistivity/TDS/Sal.)




Conductivity

Range 0.000 μ S/cm to 2000 mS/cm
Resolution 0.001 μ S/cm minimum, various with range selection
Accuracy ± 0.5% FS
Reference Temperature 5, 10, 15, 18, 20, 25 ºC
Calibration Points Up to 5
Calibration Reminder Yes
Standard Recognition 10 μ S/cm, 84 μ S/cm, 500 μ S/cm, 1413 μ S/cm, 12.88 mS/ cm;146.5 μ S/cm, 1408 μ S/cm, 12.85mS/cm, 111.3mS/cm
Resistivity Range 5.00 Ω ·cm~100.0 M Ω ·cm
Resolution 0.01 Ω ·cm minimum
Accuracy ± 0.5% FS
TDS Range 0.000 ppm ~1000 ppt
Resolution 0.001 ppm minimum, changed with range
Accuracy ± 0.5% FS


Salinity

Type NaCl
Range 0.0 ~ 80.0 ppt
Resolution 0.1ppt
Accuracy ± 1ppt


Temperature

Range -10 to 135 ºC, 14 to 275 ºF
Unit ºC, ºF
Resolution 0.1
Accuracy ± 0.1
Measurement Reading Mode Auto Read (Fast, Medium, Slow), Timed, Continuous
Reading Prompts Reading, Stable, Locked
Temp. Compensation ATC, MTC
Data management Data Storage 1000 Groups
GLP Features Yes
Log Management Yes

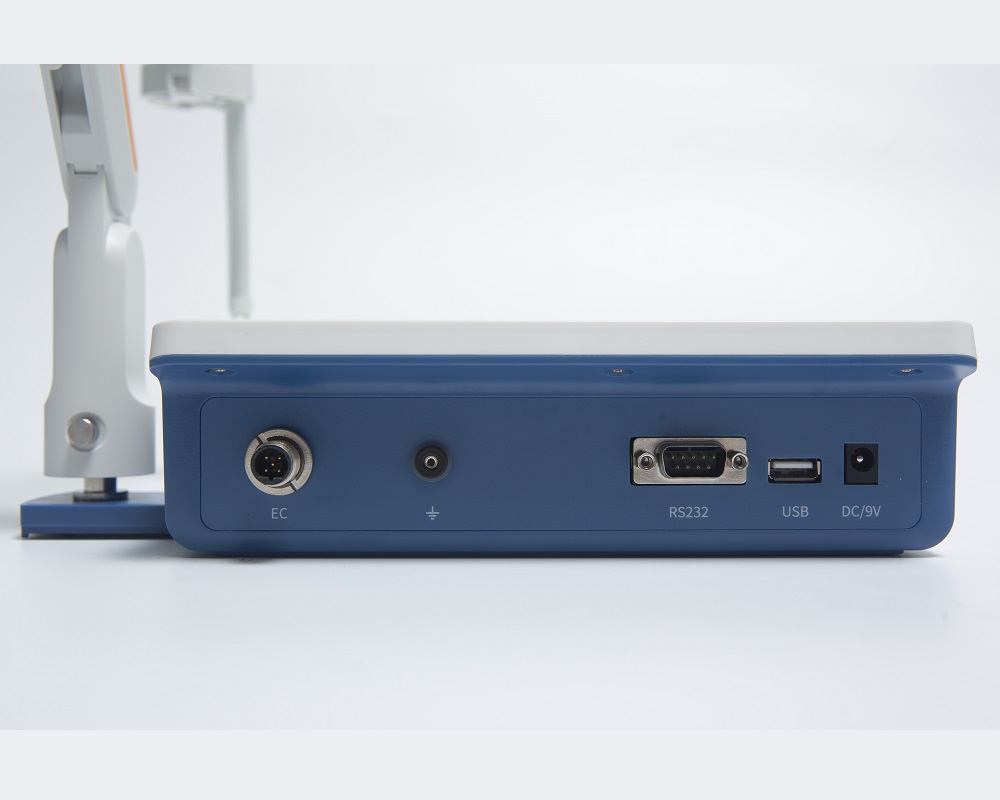

Inputs Conductivity with Temp. Probe 5-pin aviation connector
Outputs USB USB 2.0 flash memory device, PC, scanner
RS 232 Printer, auto-sampler


Display options

Backlight Yes
Auto Shutdown 1~60 min, off
IP Rating IP54
Date and Time Yes
General Power AC Adapter, 100-240V AC input, DC24V output
Dimensions 220 × 195 × 68 mm
Weight 950g (2.09 lb)
