SKZ101 Tensile Tester
1
2
3
4
5

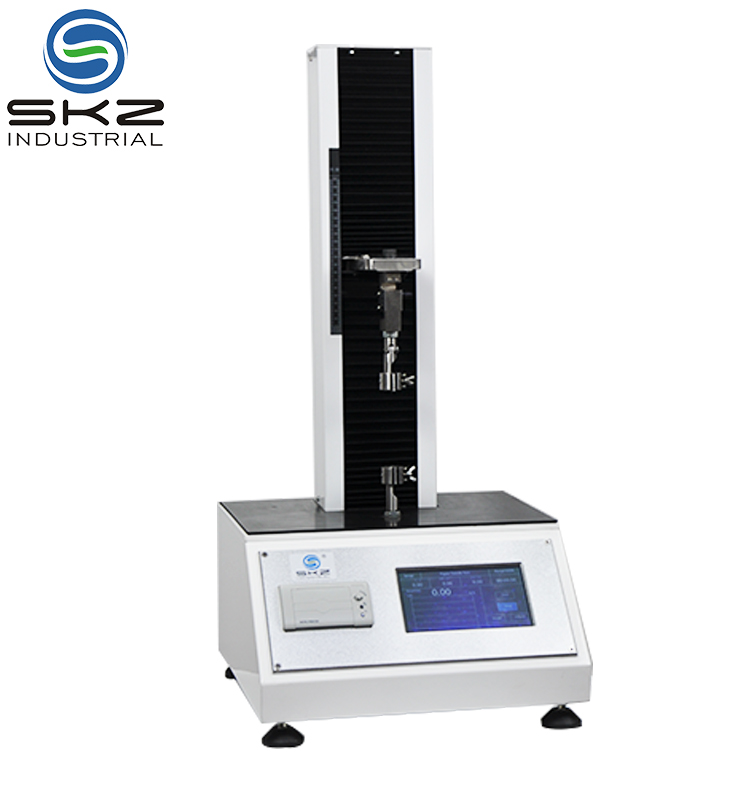

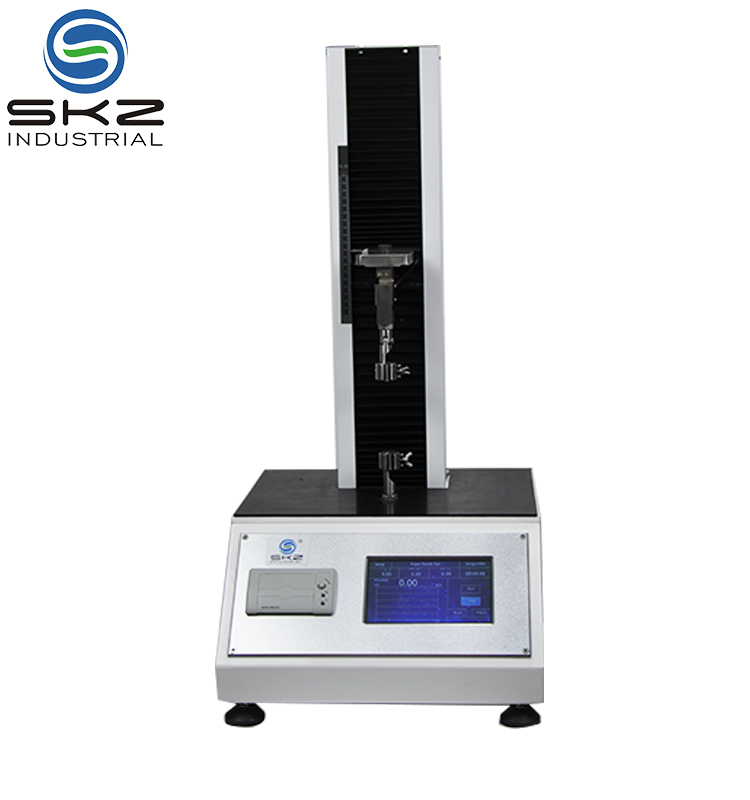

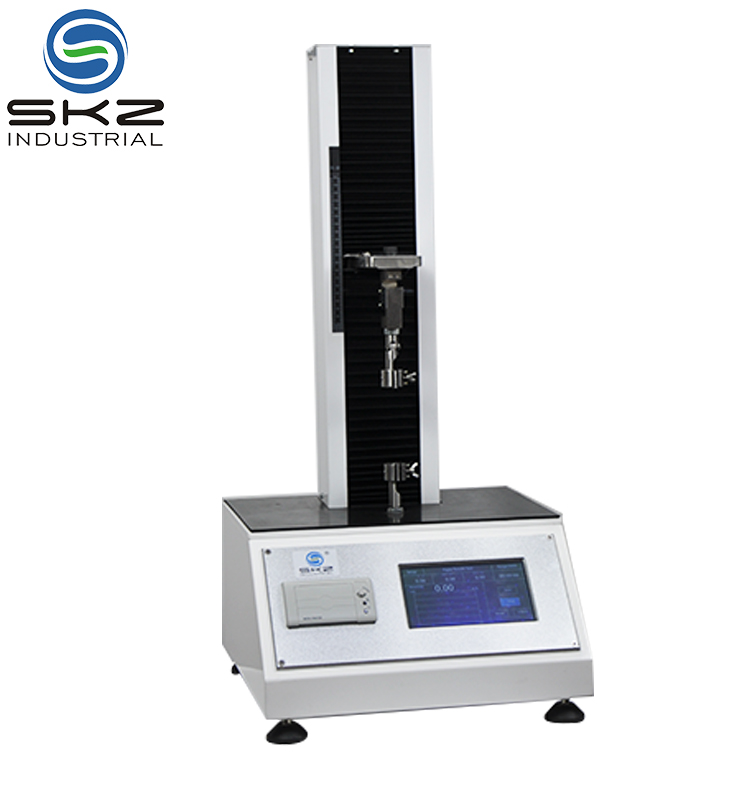

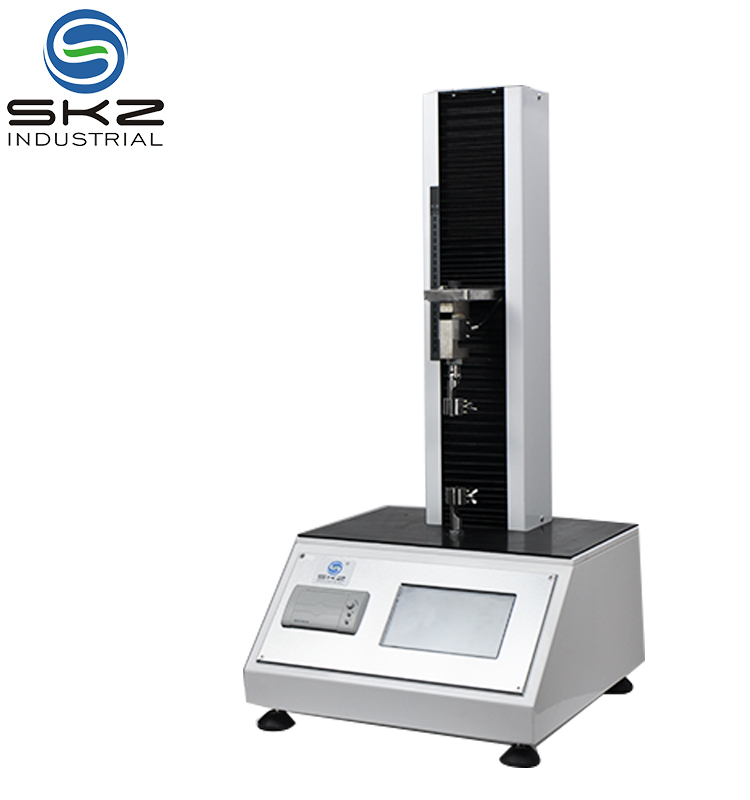

SKZ101 Tensile Tester

It is used to test the Tensile strength test of paper and board, It adopts precise auto control and data acquisition system.



Feature

1) Color touch screen display.

2)The test force can be adjusted in a wide range, stable and effectively.

3) Display test force, test speed and displacement at real time.

4) It can automatically return to the original position after test.

5) With limit position protection, over load protection and over current protect.

6). Equipped with mini printer, test report can be printed out

$2,700.00
buy
Get a quote

Payment Methods:

  • PayPal

Products details:

SKZ101 Tensile Tester

It is used to test the Tensile strength test of paper and board, It adopts precise auto control and data acquisition system.

Feature

1) Color touch screen display.

2)The test force can be adjusted in a wide range, stable and effectively.

3) Display test force, test speed and displacement at real time.

4) It can automatically return to the original position after test.

5) With limit position protection, over load protection and over current protect.

6). Equipped with mini printer, test report can be printed out



Technical parameter

Max test force 500N
Precision of the equipment 1%
Measuring range 1N-500N
Relative error of indicating value 1%
Resolution of test force 1/200000
Min reading value of deformation 0.01mm
Speed range 1-500mm/min
Stroke of crossbeam 400mm
Loading mode Electrically
Control mode Micro-computer
Voltage (should connect to the ground) 440V, 3 phase
Power 400W
Dimension of main machine 410X430X1550mm
Weight 110kg
