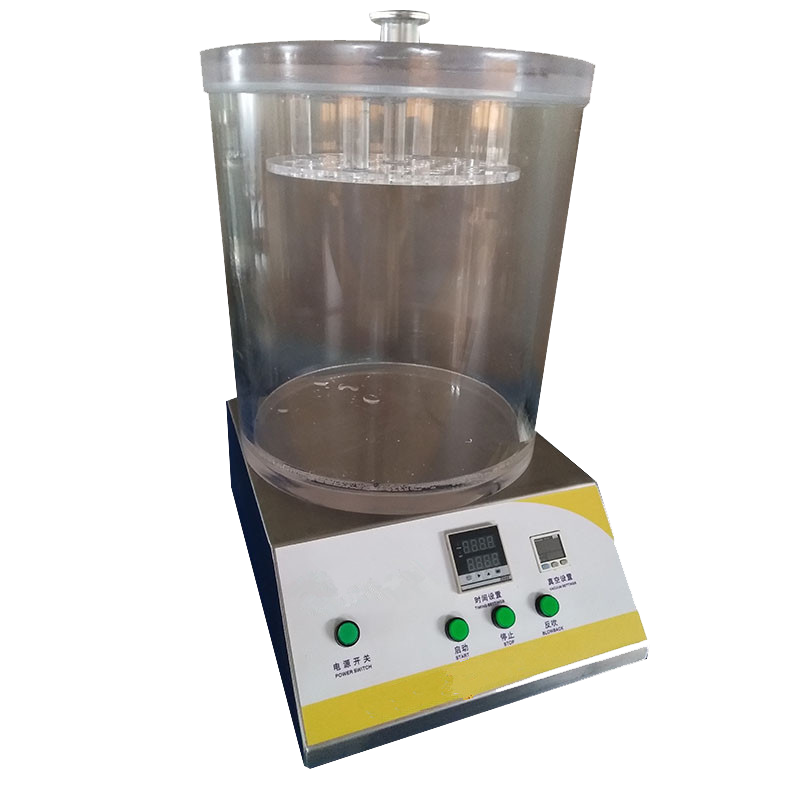

Leak Tester is a kind of tester that use compression air to produce negative pressure by vacuum device to test the seal capability and processing technique of soft plastic packaging material in food and pharmaceutical industry. It also can test the specimen which has done the drop and compression test.
Standards
GB/T15171-94 (the Seal Testing Method for soft packaging).
ASTM D 3078 Standard Test Method for Determination of Leaks in Flexible Packaging
Working principle:
To vacuum the vacuum room and make the pressure difference between inside and outside of the specimen in the water. We can evaluate the seal capability by observing the air permeability situation of the specimen.
Feature
Technical parameters:
Display Range | -100 kPa -0 |
Display resolution | 0.1kPa |
Vacuum | ≤0-(―85KPa) |
Timing range | 0–9999sec |
Timing display resolution | 1sec |
Recommend timing set | 10sec –180sec, default setting: 30sec |
Input air pressure | 0.2-0.5Mpa (customer self provide) |
Air pressure | 70L/min |
Drainage pipe | Φ 8mm, polyester TPU |
Dimension of vacuum room | Φ270×160mm(H) |
Power | 220V, 50HZ or 60HZ |
Dimension of host | 490*300*250mm |
Weight | 20kg |
