SKZ1024 Bauer Fiber Classifier Φ100
photobank
photobank (1)
photobank (2)
photobank (3)

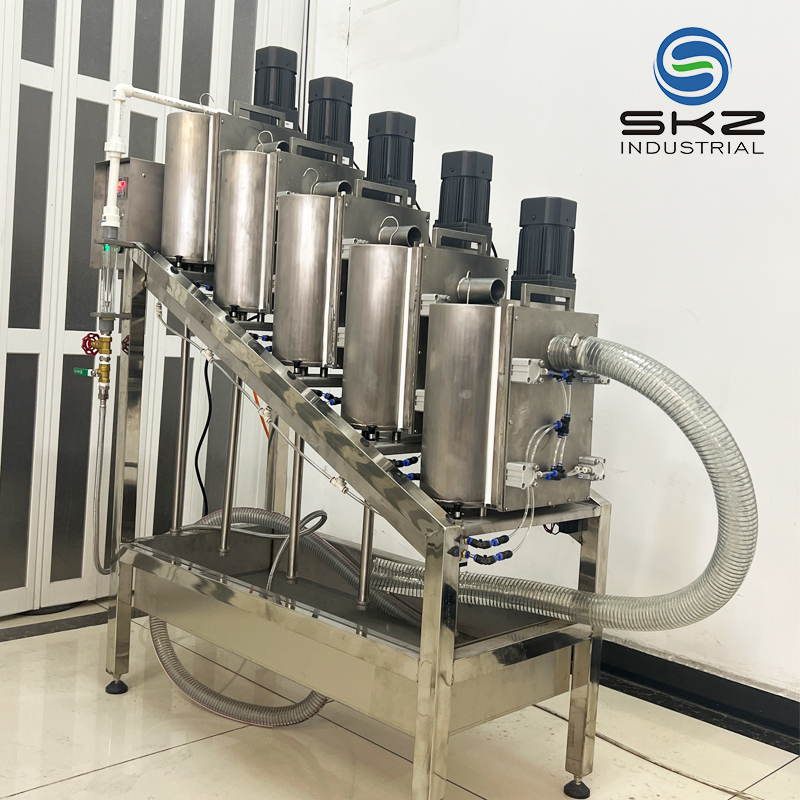

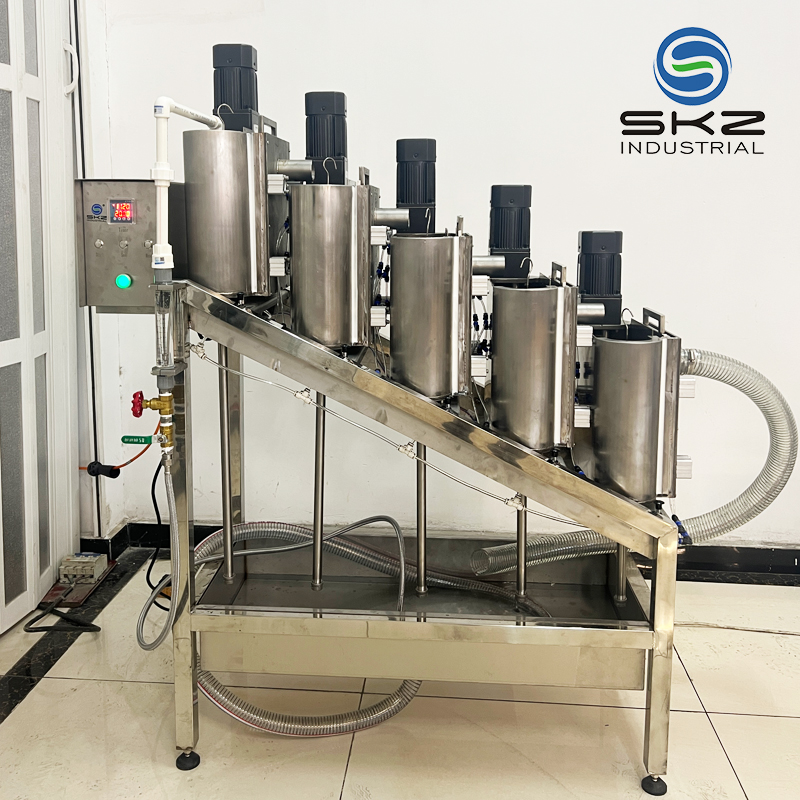

SKZ1024 Bauer Fiber Classifier Φ100

Fiber Classifier (Bauer Fiber Classifier) is the equipment used for measuring the weight-average fiber length of pulp fiber according to screening method by pulp and paper-making laboratory.

$11,000.00
buy
Get a quote

Payment Methods:

  • PayPal

Products details:

Principle:

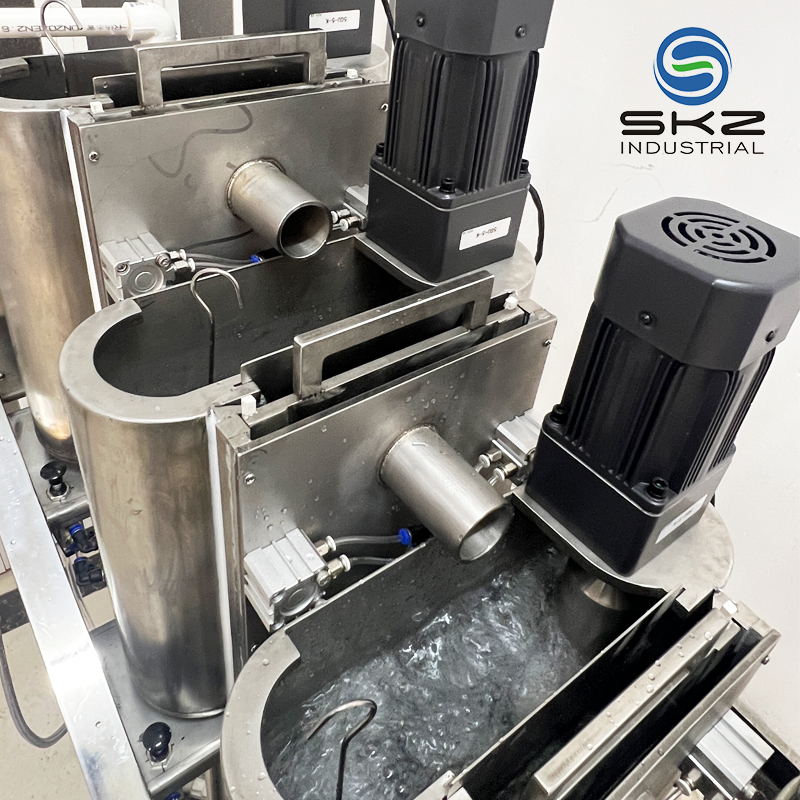

Screening the pulp suspension into the vessel, the vessel is charged with mesh sieve, Container into a ladder type, the pulp suspension flows from one container to another container, in various different sieve to retain the fiber length pulp, retention of pulp fiber length and the sieve mesh size. Water at a certain speed, the screening after a certain time. Collected from each sieve fibers, drying, constant weight at each mesh retained on the amount of fiber mass percentage of input sample report results.

Sieve grading number5
Sieve differentiator capacity10L
Agitator speed580 ± 50 rev / min, adjustable speed max 1400r / m
Sieve mesh14mesh, 28mesh, 48mesh, 100mesh
Flow velocity11 ± 0.5L / min
Screening time0~9999min
Main materialStainless steel (0Cr18Ni9)
Dimentsions1780mm(long)×520mm(width)×1680mm(high)
Weight130Kg
