Technical parameters
| Vessel inner diameter× height | φ152 × 191mm |
| Spiral baffle inside | width × pitch × Number: 6.5 × 51 × 4 |
| Agitator blades | φ90 three blades |
| Agitator shift | from the top is rotated clockwise |
| Distance from bottom of container agitator blade | 25mm |
| Impeller rotation frequency | 48.3 ± 1.65S-1 |
| Total power | 220V/AC single-phase 400W, motor: 370W |
| Dimensions | 450 × 265 × 395 (mm) |
| Weight | 44 kg |
没有可用的付款方式。

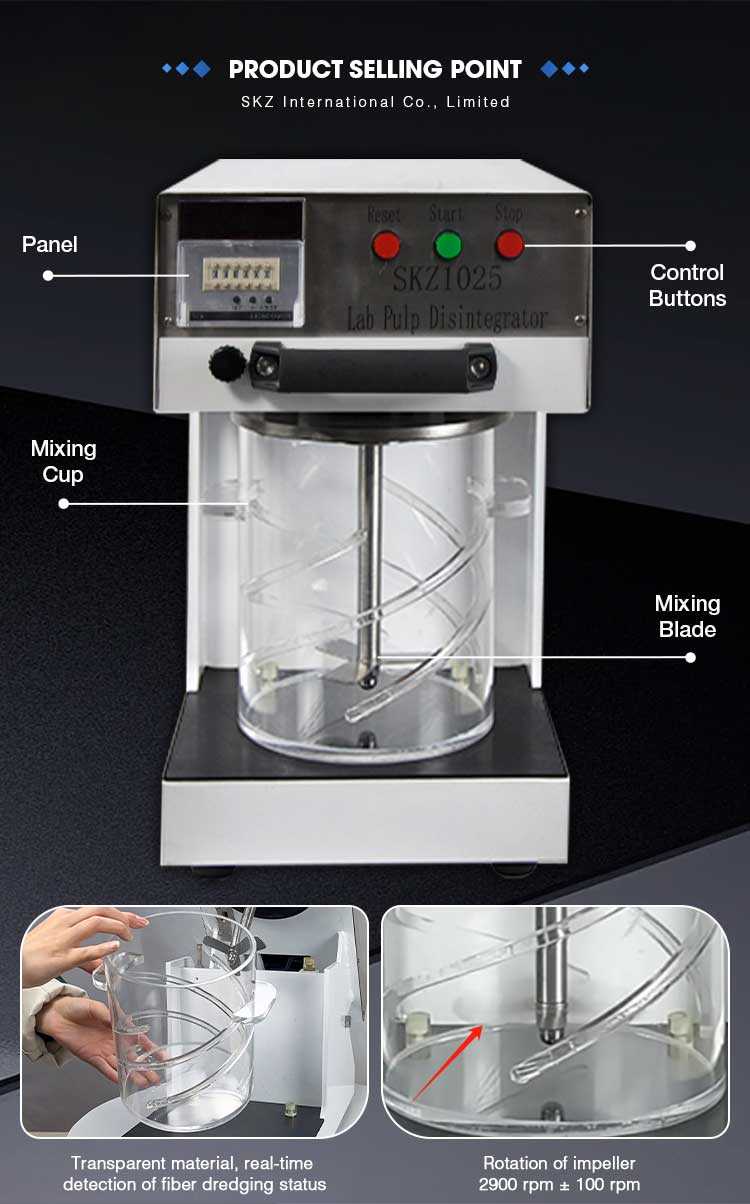

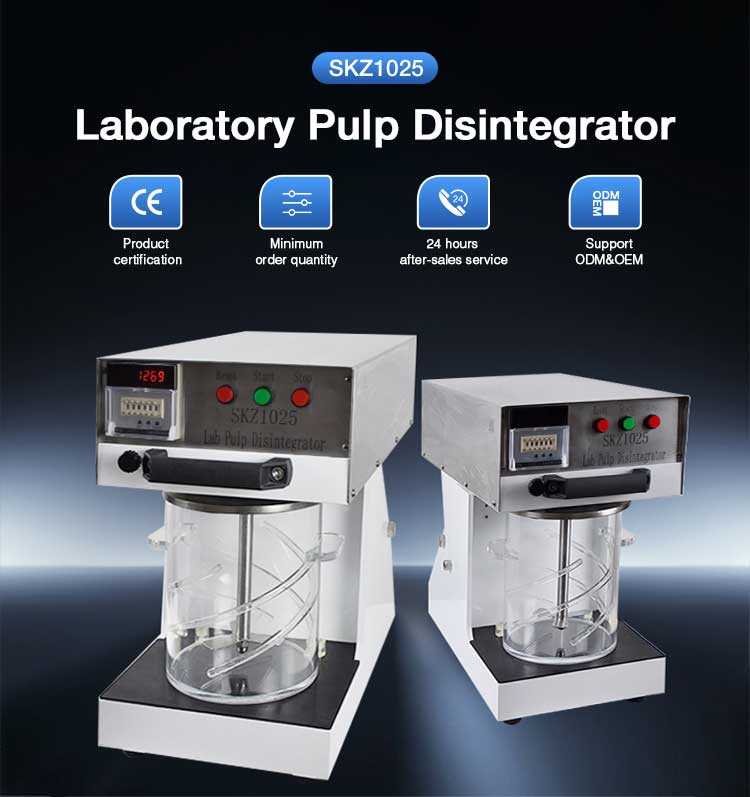

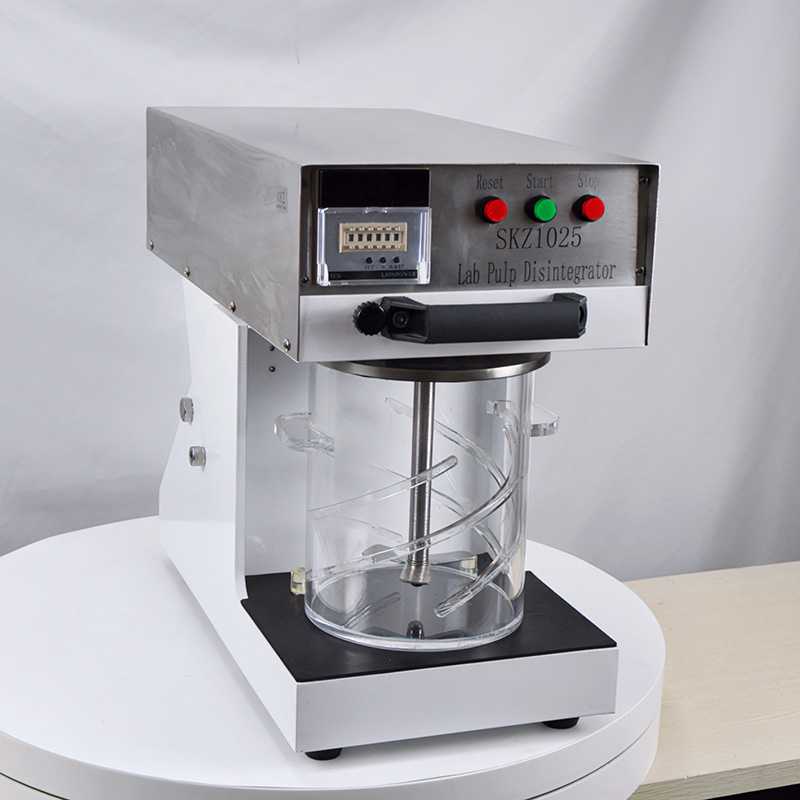

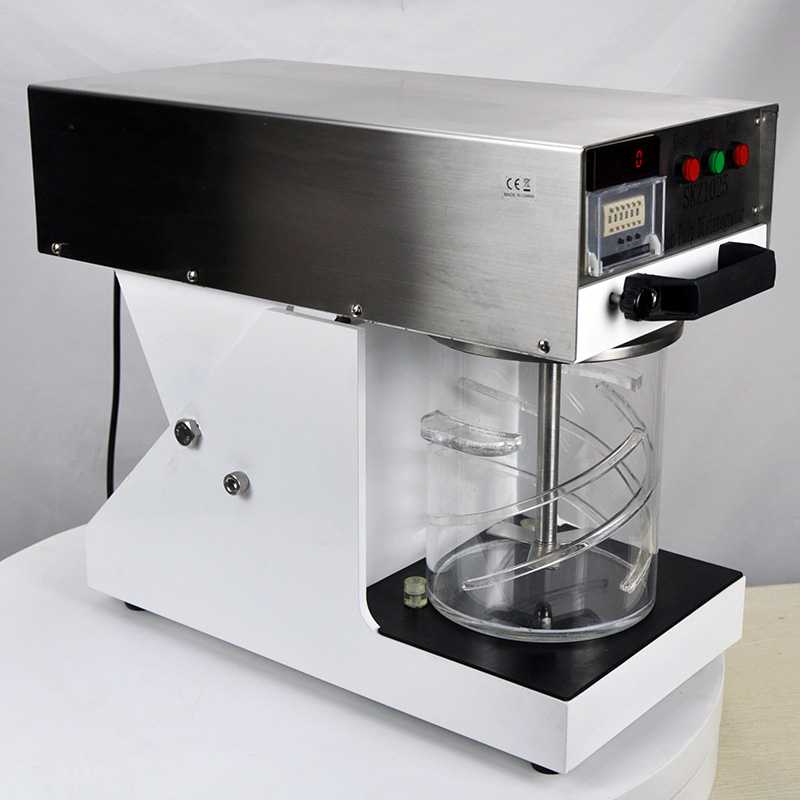

Laboratory Pulp Disintegrator (also known as standard fiber Disintegrator, standard fiber stirrer), Suitable for laboratory wet disintegration of pulp:
the disintegration is to separate the interwoven fibers in water after mechanical processing, and meanwhile to maximum remain fiber original structure properties unchanged,
in order to ensure the experiment to obtain reliable data, using the original scientific research and production of effective, economy.
Standards:
ISO5263, JIS-P8220, TAPPI-T205
Technical parameters
| Vessel inner diameter× height | φ152 × 191mm |
| Spiral baffle inside | width × pitch × Number: 6.5 × 51 × 4 |

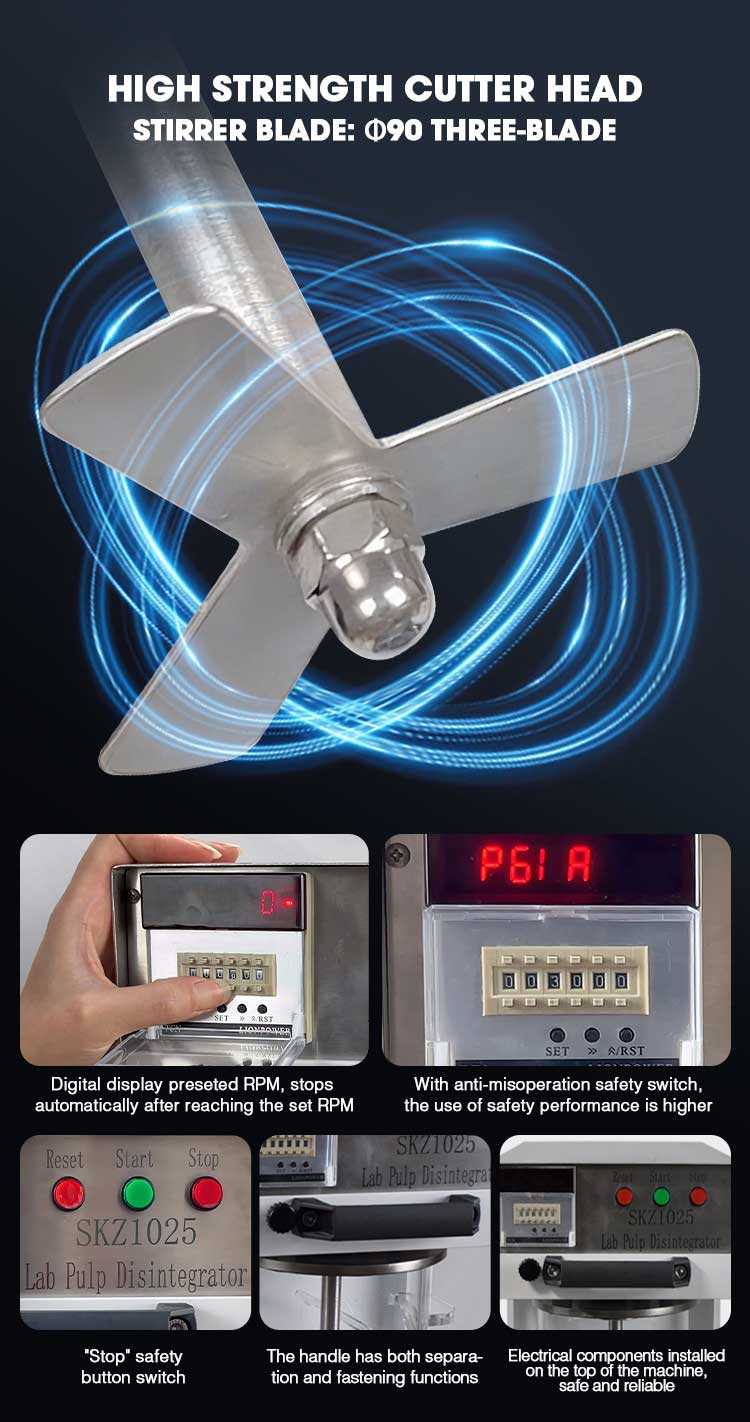

| Agitator blades | φ90 three blades |
| Agitator shift | from the top is rotated clockwise |
| Distance from bottom of container agitator blade | 25mm |
| Impeller rotation frequency | 48.3 ± 1.65S-1 |
| Total power | 220V/AC single-phase 400W, motor: 370W |
| Dimensions | 450 × 265 × 395 (mm) |
| Weight | 44 kg |
