Printability Tester is a most basic designed for paper and paperboard printing picking printability test development of computer process control apparatus.
Applicable to all kinds of offset, letterpress and gravure paper and cardboard printing simulation test. Equipped with a high speed ink refilling equipment, a standard scale, aluminum printing plates, wrapping paper.
Standards
ISO3782, GB/T2679.15, QB/T1058,TAPPI 514 and 575, SCAN P 63:90
Feature:

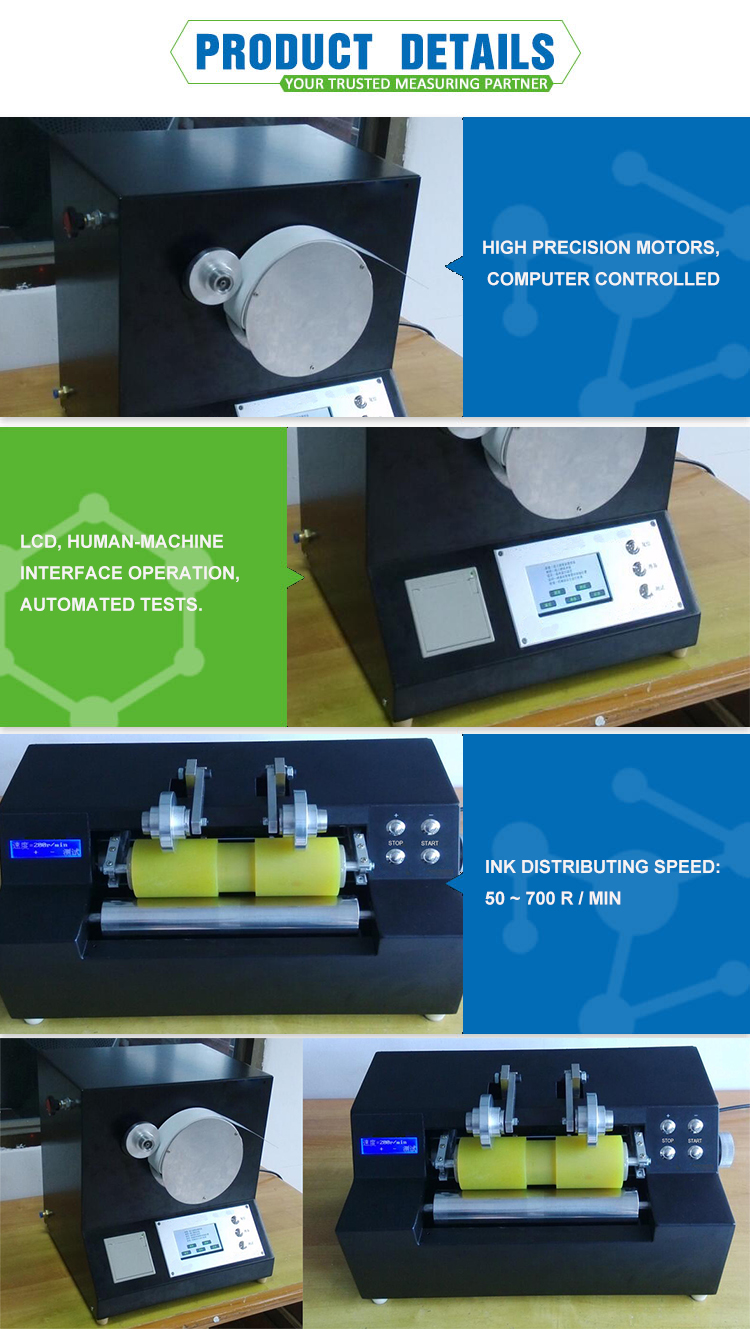

① the control system accurate.
Using high precision motors, computer controlled, guaranteed fan swing speeds increases accuracy, error when testing the actual speed and the theoretical value is less than 1%.
② the control system accurate.
Using high precision motors, computer controlled, guaranteed fan swing speeds increases accuracy, error when testing the actual speed and the theoretical value is less than 1%.
③ Easy to operate.
Liquid crystal display, friendly human-machine interface operation, automated tests.
④ Ease of measurement, calibration.
Instrument built-in measurement and correction system, user or metrology, calibration unit according to manufacturer’s instructions lead accuracy measurement and calibration of the instrument
Technical Parameters
| Measure Range | (0.2~6)m/s |
| Printing pressure | 0-1000N adjustable, standard: 350N ±10N |
| Printing disc size | Diameter (65±0.2)mm, Width (10±0.2)mm |
| Radius of sector | (85±0.2)mm |
| Elongation of Accuracy | ≤1％ |
| Power | AC220V,50Hz |
| Dimension | 388×378×408mm |
| Weight | 45kg |
Technical Parameters for the ink distributing device
| Ink distributing speed | 50 ~ 700 r / min |
| Dimension | 490x 280 x350mm |
| Power Requirements | 220V / 50-60Hz |
| The rear is aluminum roller drive | |
| Two aluminum roller driven roller, respectively, for traditional ink and UV curable ink | |
| Can be used in a production environment | |
| Meet the EC requirements | |
