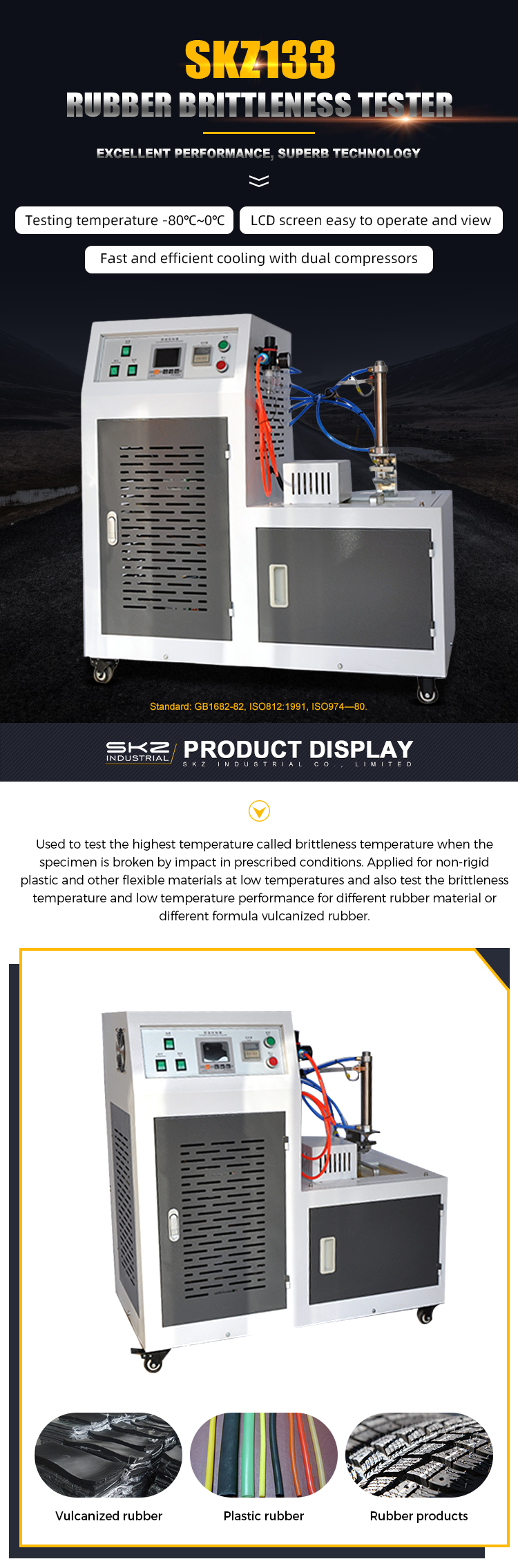

Used to test the highest temperature called brittleness temperature when the specimen is broken by impact in prescribed conditions. Applied for non-rigid plastic and other flexible materials at low temperatures and also test the brittleness temperature and low temperature performance for different rubber material or different formula vulcanized rubber.
Standard:
GB1682-82, ISO812:1991, ISO974—80.
Technical parameters:
| Testing temperature | -80℃~0℃ |
| Impact speed | 2 m/s±0.2 m/s |
| Impactor weight | 200 ± 20g |
| Working stroke | 40 ± 1mm |
| Temperature fluctuation | <±0.5℃ |
| Distance between impactor and clamp | 11±0.5 (mm) |
| Distance between impactor and sample | 25±1mm |
| Volume of colder | 3L |
| Sample size | Length: 25.0±0.5mm,
width: 6.0±0.5mm, thickness: 2.0±0.3mm |
| Power | 1100W |
| Dimension | 900*510*950mm |
| Weight | 130KG |
