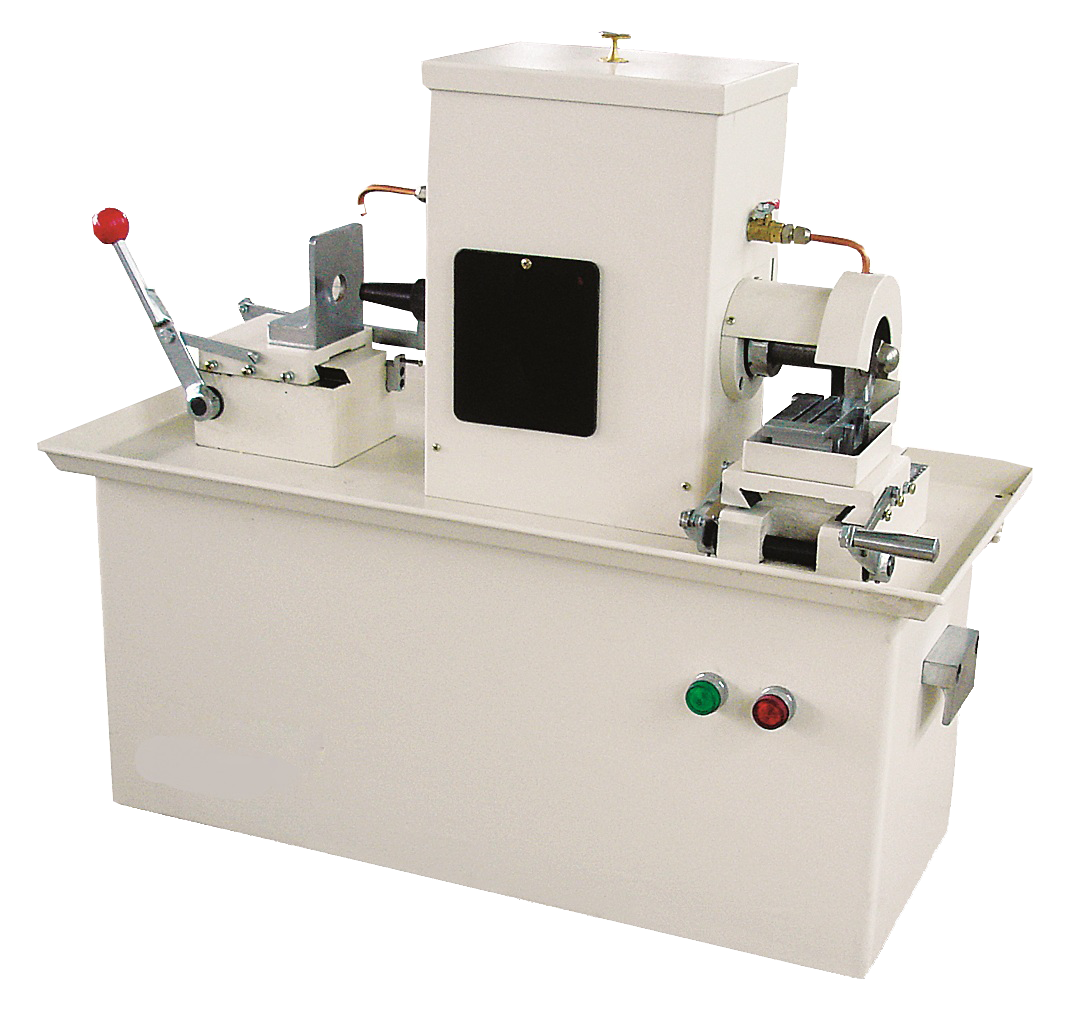

The double-headed sample cutter for cutting standard sample for rubber plasticity test, by one piece of Ф16 ring knife and two Ф100 single blade round knife cutting dia. 16mm, thickness 10mm standard sample, without replacement knife, easy to operate.

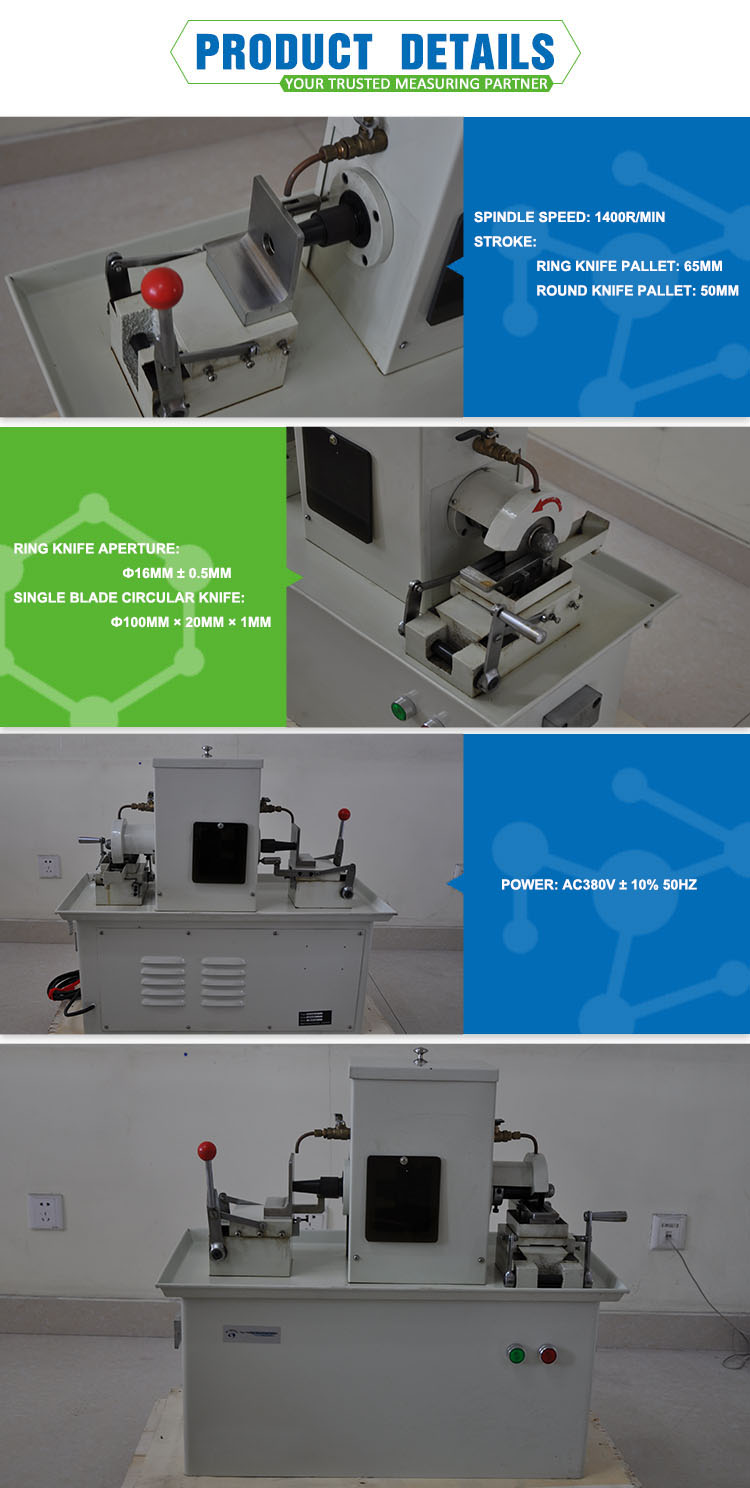

Technical parameters:
| Spindle speed | 1400r/min |
| Stroke | ring knife pallet: 65mm |
| Round knife pallet: 50mm | |
| Ring knife Aperture | Ф16mm ± 0.5mm |
| Single blade circular knife | Ф100mm × 20mm × 1mm |
| Power | AC380V ± 10% 50Hz |
| Dimensions | 800mm × 355mm × 590mm |
| Net weight | 90kg |
