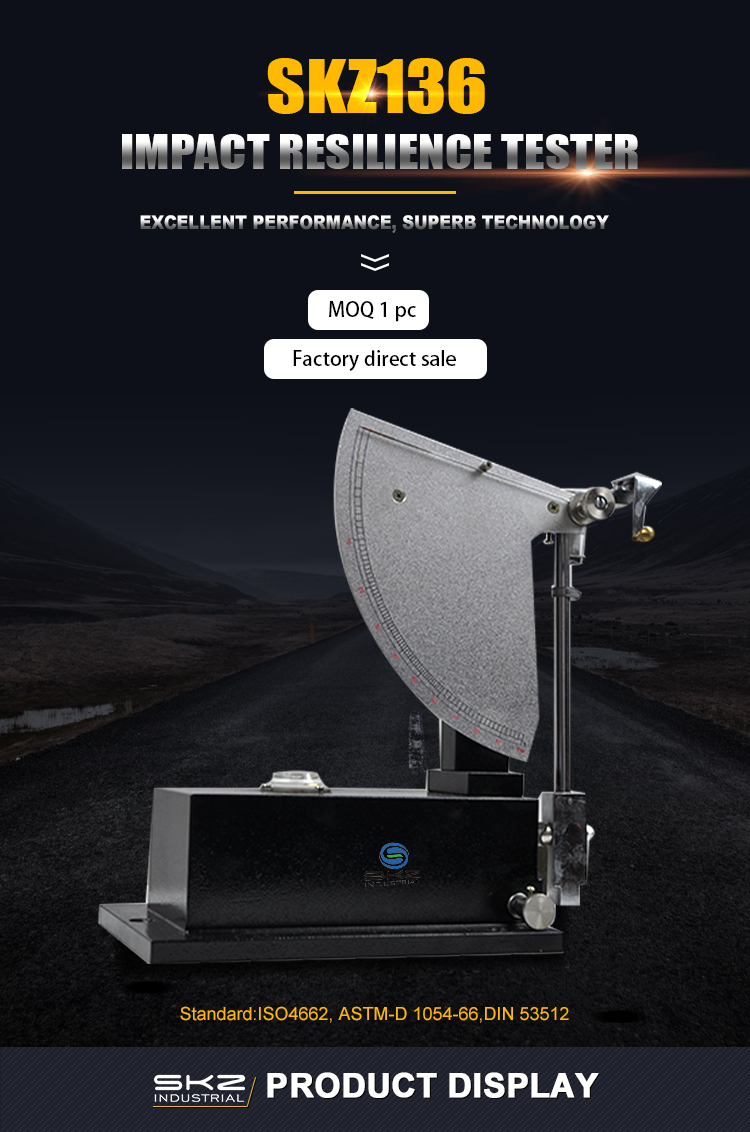

The instrument is the pendulum impact resiliency tester with energy 0.5J and applied to measure the resilience value of vulcanized rubber with hardness 30—85IRHD. It measures up to ISO4662, ASTM-D 1054-66,DIN 53512
Technical parameters:

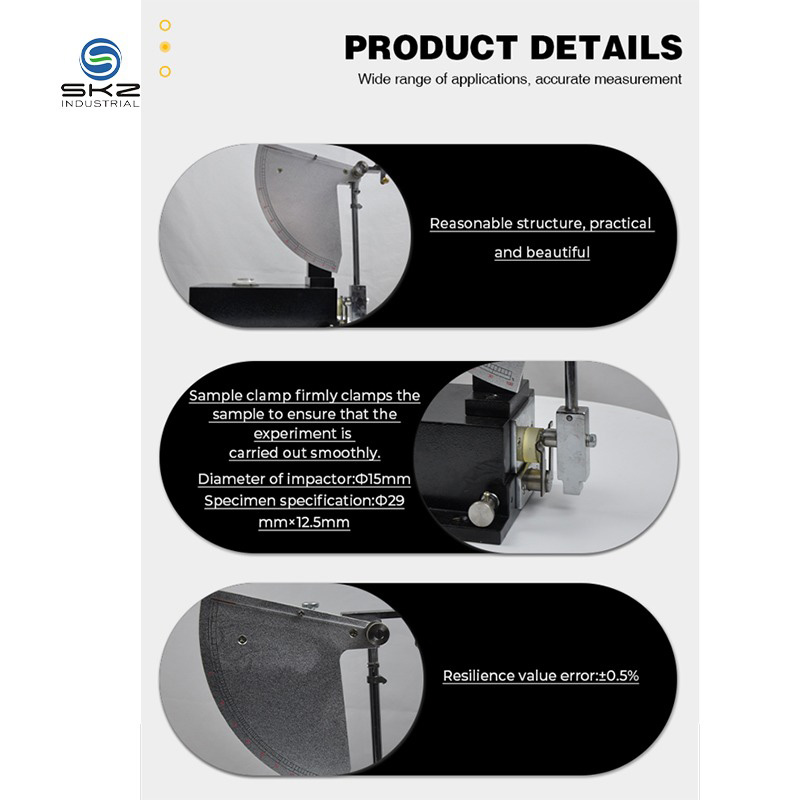

| Diameter of impactor | Ф15mm |
| Specimen specification | Ф29mm×12.5mm |
| Impact weight | 0.35-0.1kg |
| Impact speed | 1.4+0.6m/s |
| Strain energy density | 351+112kJ/m³ |
| Resilience value error | ±0.5% |
| Dimension | 320mm×200mm×360mm |
| Weight | 20kg |
