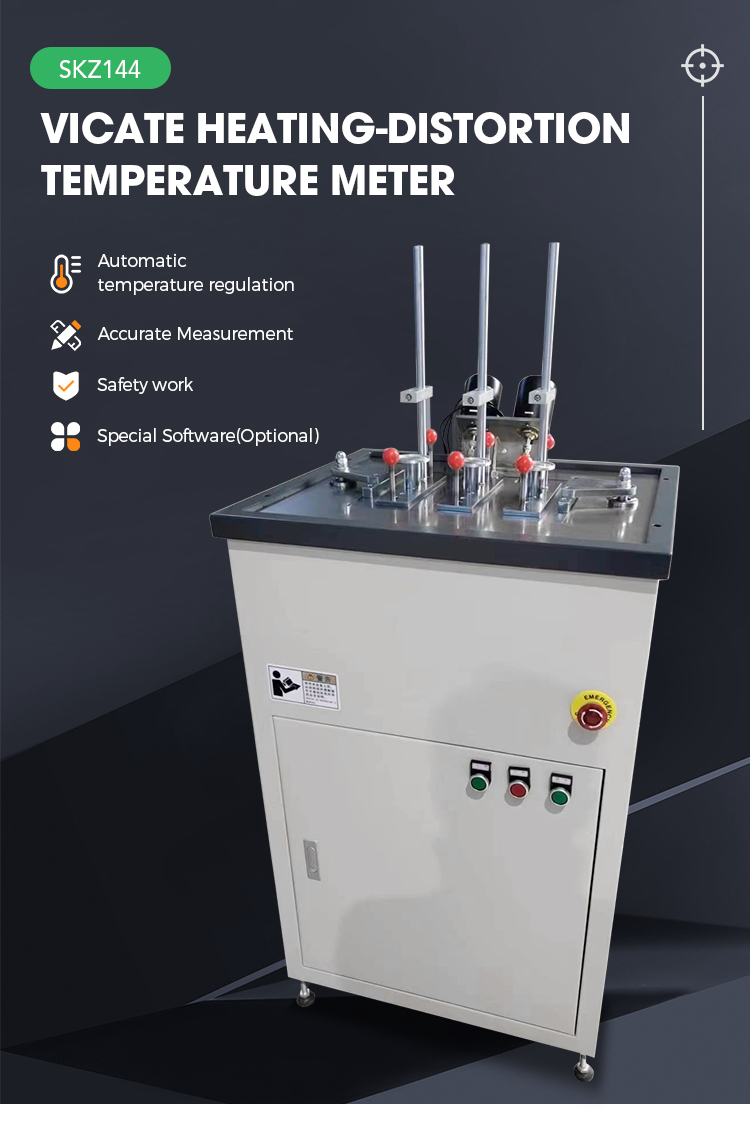

SKZ144 Vicate Heating-distortion Temperature Meter

Used to test the Vicat softening temperature and heat distortion temperature of polymer materials

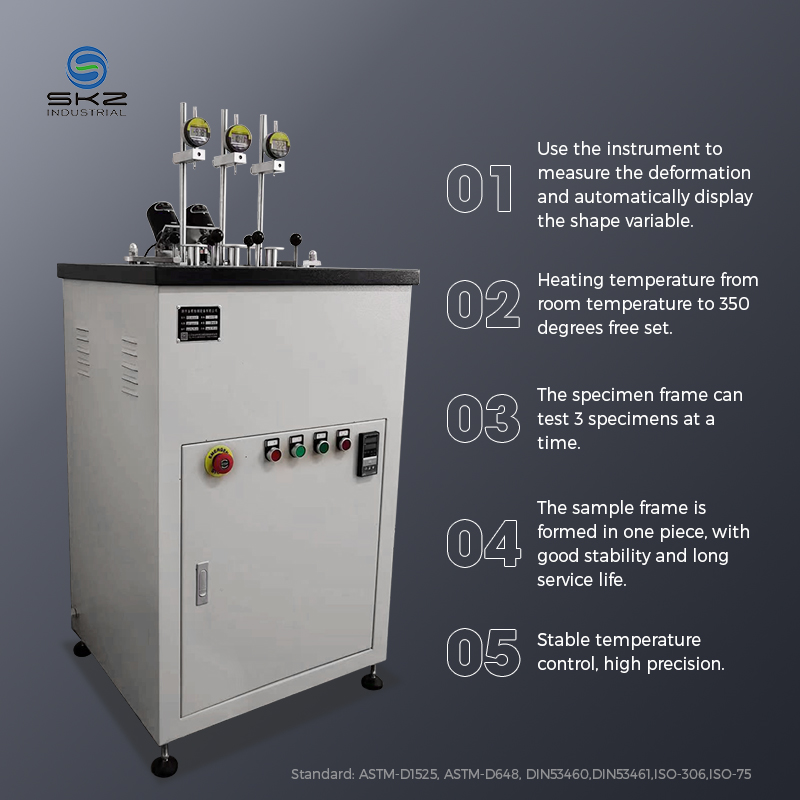

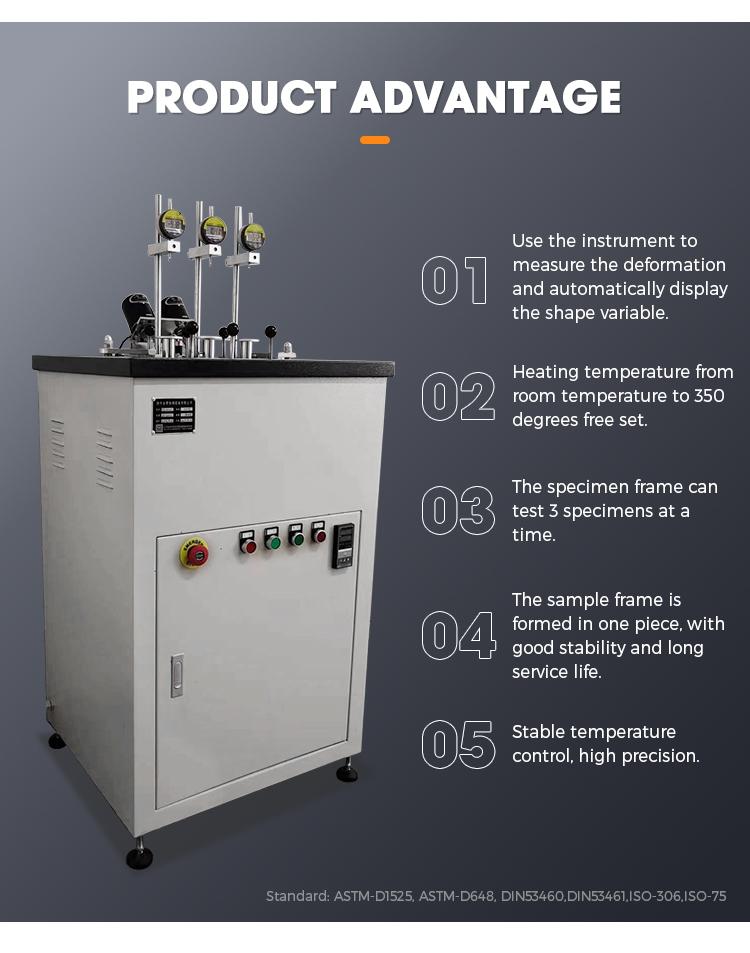

Feature

1.Using meter to measure distortion and temperature controller to set temperature.

2. Specimen stand can automatically go up and down and test 3specimens in one time.

Get a quote

Products details:

Standard:

ASTM-D1525, ASTM-D648, DIN53460,DIN53461,ISO-306,ISO-75

Technical parameters:

Temperature range	room temperature~350℃
Heating speed	(12±1)^oC/6min[(120±10)^oC/h]
Heating speed	(5±0.5)^oC/6min[(50±5)^oC/h]
Max temperature error	±0.1℃
Measuring range of distortion	0-1mm
Measuring error of distortion	0.01mm
Heating media	polydimethylsiloxane
Cold method	over 150℃ natural cold
Cold method	Below 150℃ water cold or natural cold
Power	AC220V±10%, 20A, 50HZ, 4KW
Dimension	720×700×1380 (mm)
Weight	180kg
