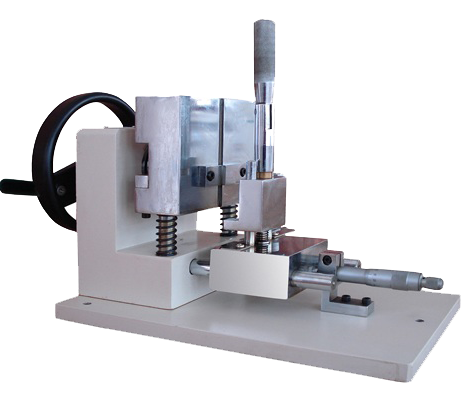

Used to cut specimens for Charpy Impact and Izod Impact testing.
Technical parameters:

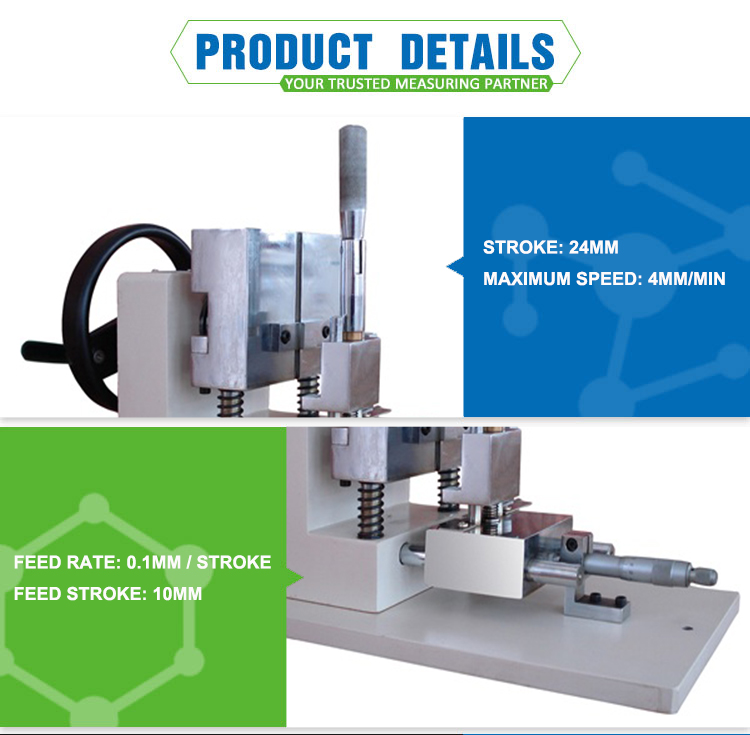

| Stroke | 24mm |
| Maximum speed | 4mm/min |
| Sample Type | type 1, type 2, type 3, type 4 |
| Gap type | A type, B type, C-type |
| Parameters | A type: 450 ± 1 r = 0.25 ± 0.025 |
| B-type: 450 ± 1 r = 1.0 ± 0.025 | |
| C1-type: 450 ± 1 r = 0.1 ± 0.02 | |
| C2-type: thickness 1 = 2 ± 0.1, r ≤ 0.1 | |
| C3 type: thickness 2 = 0.8 ± 0.1, r ≤ 0.1 | |
| Profiles dedicated: 450 ± 1, r = 0.2 ± 0.05 | |
| Feed rate | 0.1mm / stroke |
| Feed stroke | 10mm |
| Dimensions | 250mm × 400mm × 500mm |
| Weight | 34kg |
