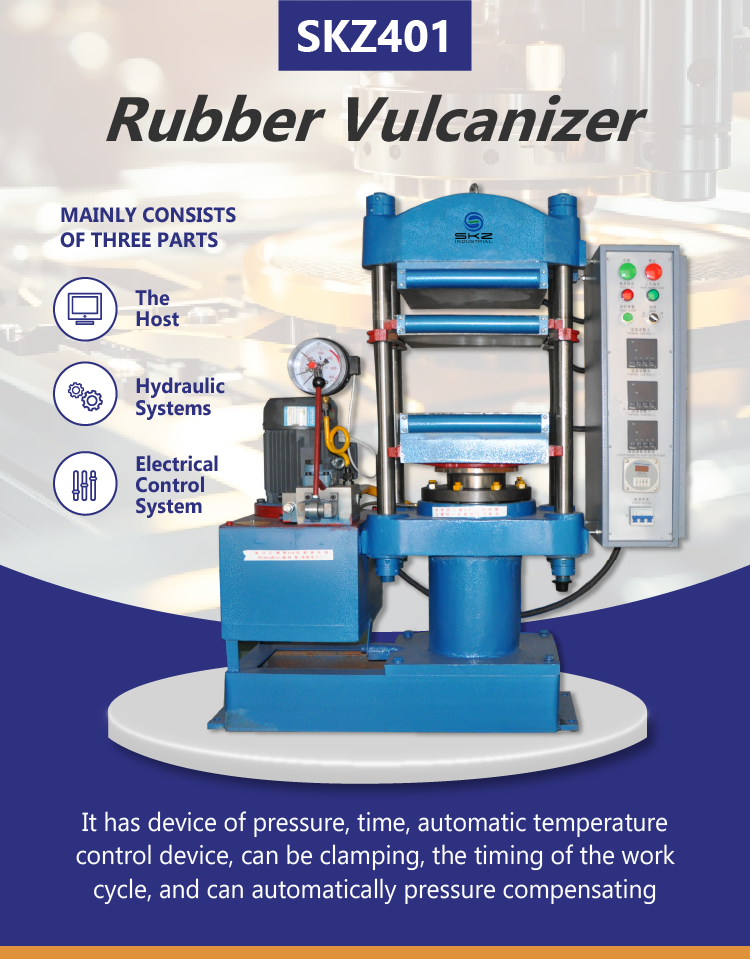

Rubber Vulcanizer is mainly used for rubber vulcanization, thermosetting plastics and insulation products of pression, This test machine has device of pressure, time, temperature automatic control device, can be realized clamping, regular work cycle, and can automatically pressure compensating
Features

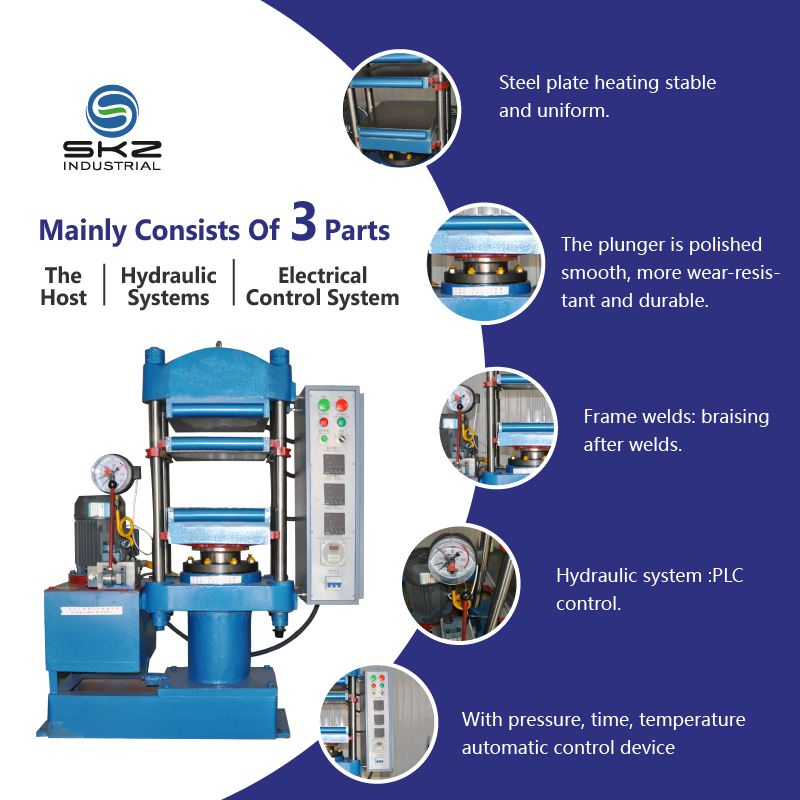

1.Mainly consists of three parts: the host, hydraulic systems, electrical control system

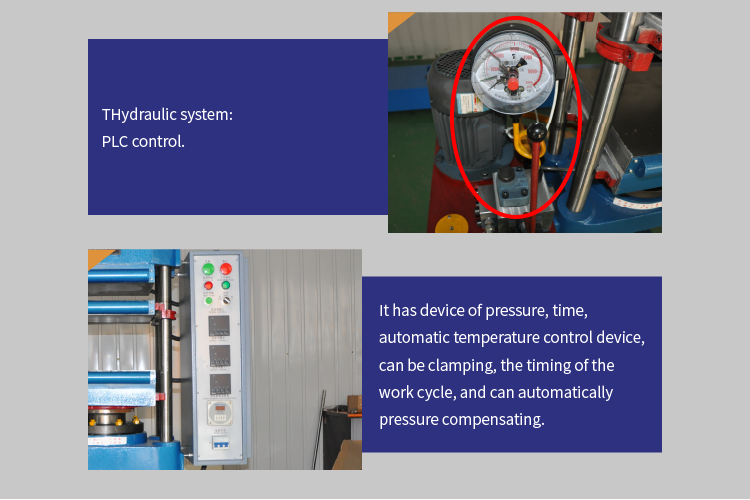

2.It has device of pressure, time, automatic temperature control device, can be clamping, the timing of the work cycle, and can automatically pressure compensating
Specification

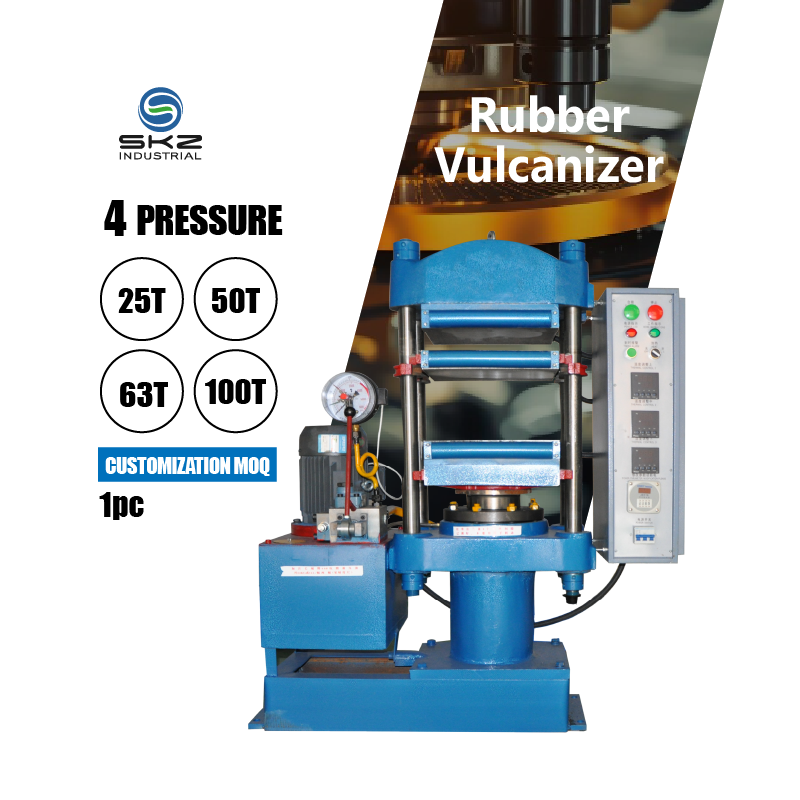

| Total pressure | 25T | 50T |
| Hydraulic working pressure | 14.5 MPa | 16MPa |
| The maximum stroke of piston | 150 mm | 250mm |
| Lift speed of the piston | 23mm/s | 26mm/s |
| Heating method | Electric heating | |
| Hot plate spacing | 75 mm | 125mm |
| Hot plate number | 2layer | |
| Hot plate size | 350 mm×350 mm | 400 mm×400 mm |
| Hot plate heating power | 7.2 kW | 9KW |
| Maximum Vapor pressure | 0.6-0.8MPa | 0.8MPa |
| Maximum Working Temprature | 200℃ | |
| Maximum Vapor Temprature | 170℃ | |
| Motor Power | 1.5KW | |
| Dimensions | 1.3m×0.55m×1.5m | 1.450m×0.650m×1.6m |
