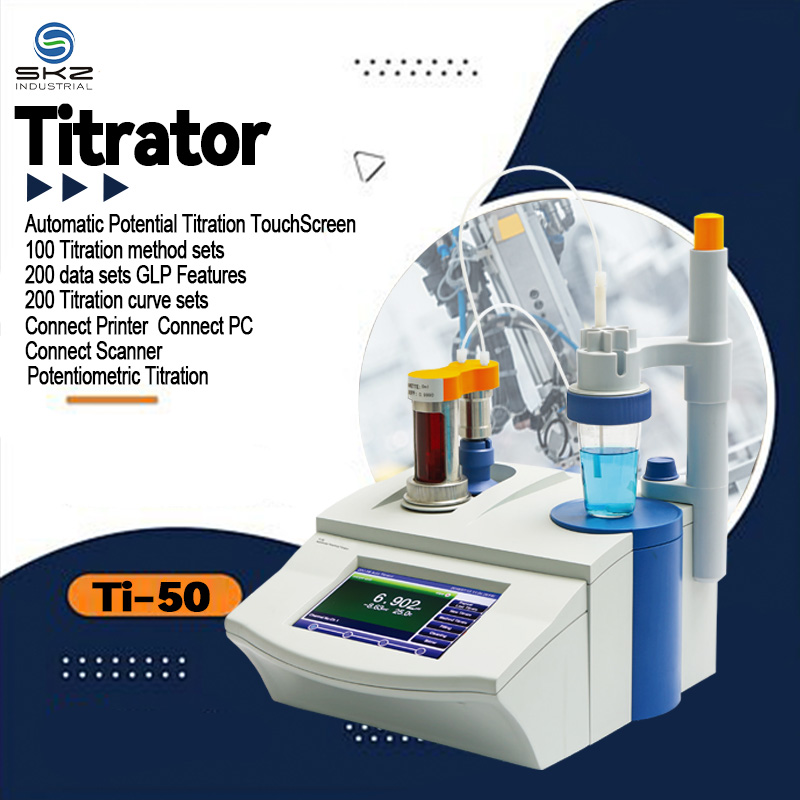

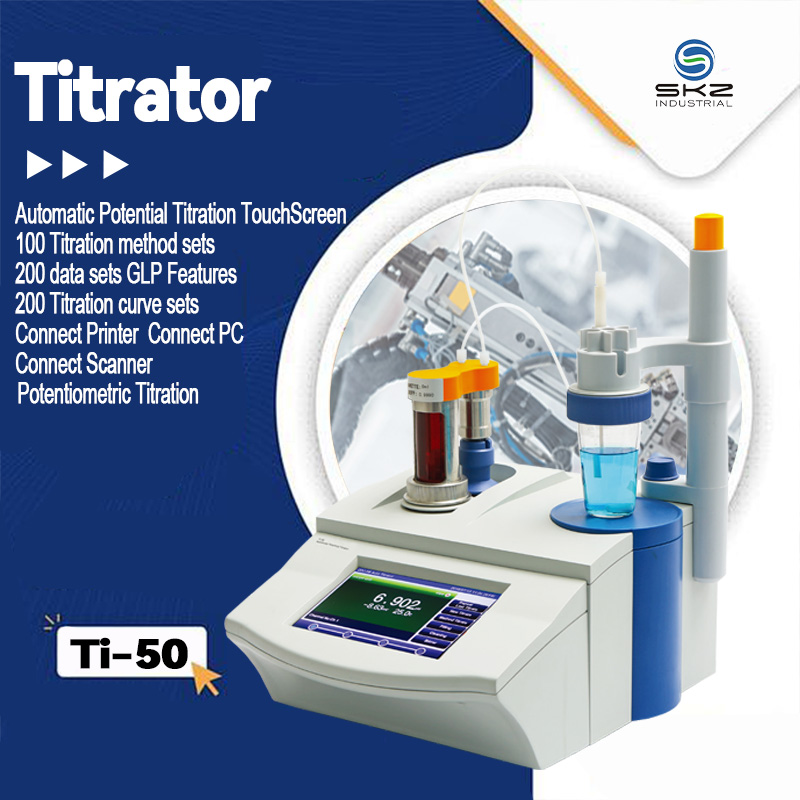

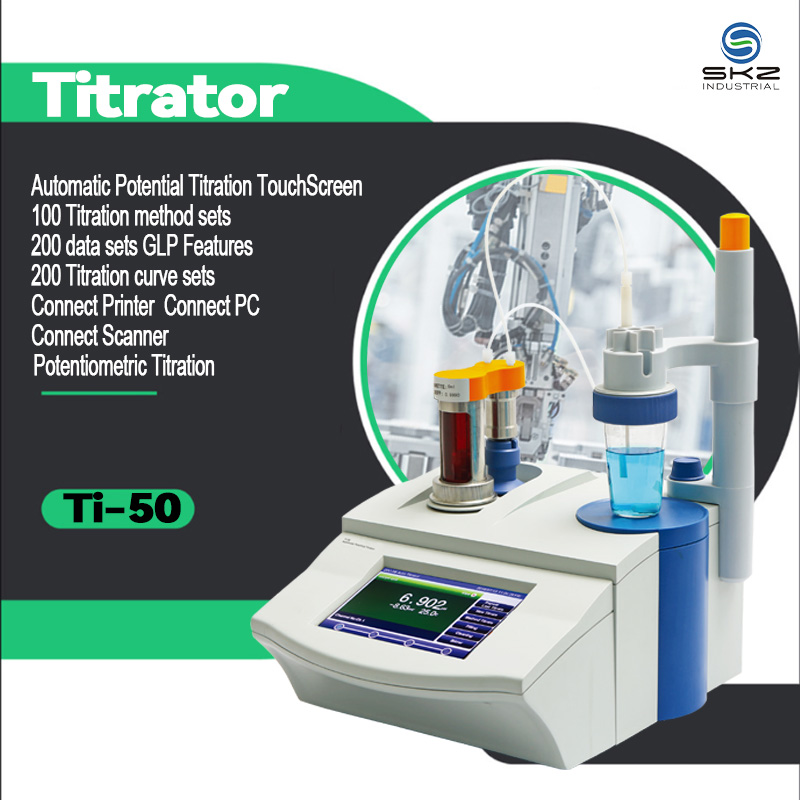

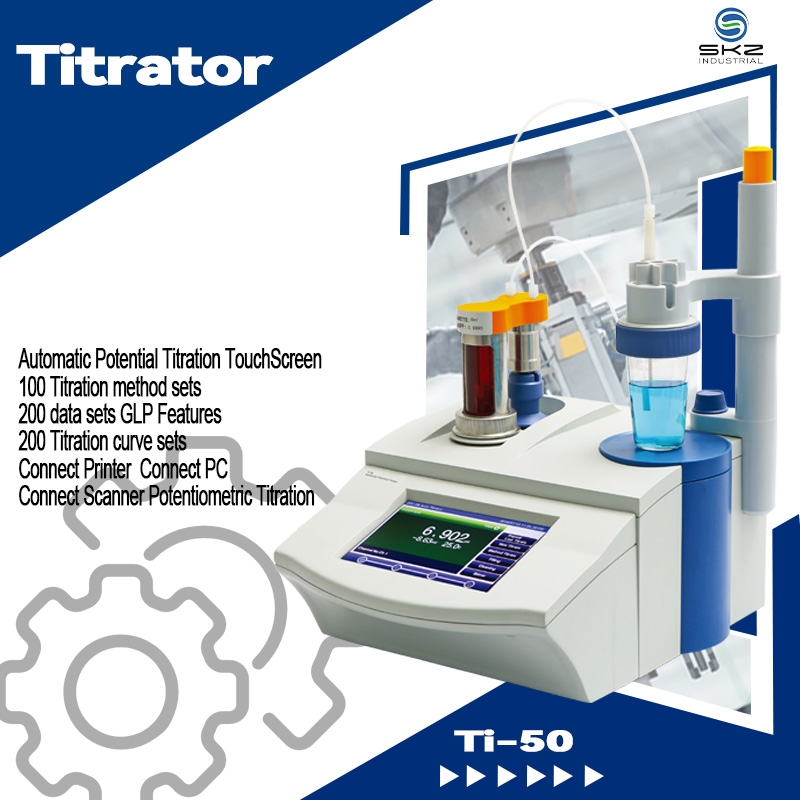

Ti-50 Automatic Potentiometric Titrator – Advanced Volumetric Analysis Solution

Product Overview

The Ti-50 is a high-performance automatic potentiometric titrator designed for precise volumetric analysis in laboratories, research institutions, industrial quality control and environmental testing. With a user-friendly touch screen, powerful data management and superior measurement accuracy, it provides a reliable and efficient solution for a full range of titration applications.

Core Features

Automatic potentiometric titration with intuitive touch screen control
Stores up to 100 titration methods for quick recall
Logs 200 sets of GLP-compliant titration results
Supports recording and viewing of 200 titration curves
Equipped with printer interface and PC communication for data output and management

Technical Specifications

Measurement type: Potentiometric titration
pH range: 0.000 ~ 20.000 pH
mV range: -2000.00 ~ 2000.00 mV
Temperature range: -5.0 ~ 105.0 ℃
Repeatability: ≤ 0.2%
Volume error:
- 10 mL burette: ±0.020 mL
- 20 mL burette: ±0.030 mL

Titration Modes & Supported Methods

Titration Modes

Pre-titration (dynamic titration)
Preset endpoint titration
Blank titration
Constant titration
Manual titration

Titration Types

Acid-base titration
Redox titration
Precipitation titration
Complexometric titration
Non-aqueous titration
Independent pH measurement function

The instrument supports creation, editing, copying and viewing of titration methods to meet diversified testing requirements.

Standard Configuration

10 mL titration device
232-01 reference electrode
213-01 platinum electrode
216-01 silver electrode
217-01 reference electrode
231-01 pH glass electrode
T-818-B-6 temperature electrode
NIST pH buffer powders (4.01, 7.00, 10.01)
